Description

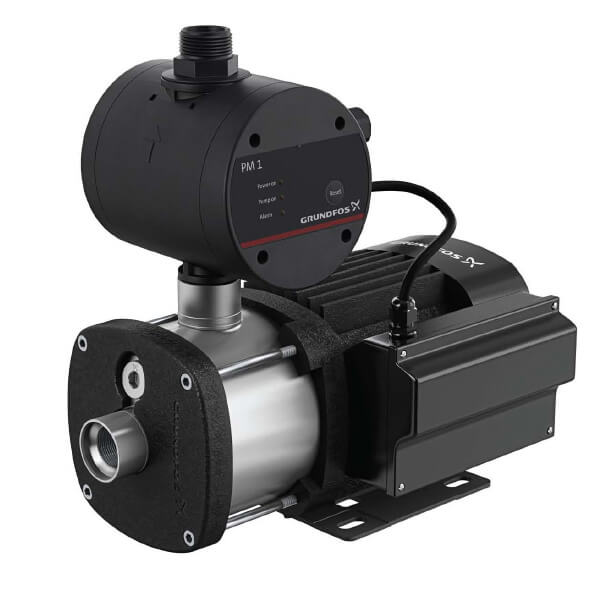

The Grundfos CMSP Booster with pressure manager is a compact booster set for water supply in domestic applications.
The pressure booster unit consists of a Grundfos CMSP pump and a Grundfos pressure manager. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running.
The CMSP Booster is very easy to install. When the booster has been connected to the pipework, it only needs to be plugged in and the system is operational.

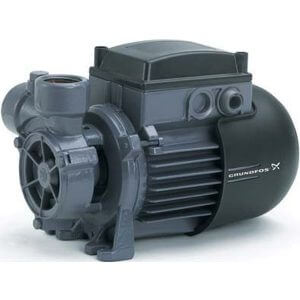

CMSP PUMP
CM self-priming pump is a horizontal, multistage, end-suction centrifugal pump.lt is fitted with a mains-operated motor and a mechanical shaft seal. The CM self-priming pump is available in stainless steel (EN 1.4301/AISI 304). The CM Booster self-priming pump can create a suction lift of up to 8 meters in less than 5 minutes when the pump is installed and commissioned correctly.
PRESSURE MANAGER
The pressure manager is the control unit of the booster system, which starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow. The control unit for CMSP Booster will be the PM1.
PM1
The PM 1 is suitable for applications where start/stop of the pump according to consumption is needed. It is the basic control solution offering start at 1.5 or 2.2 bar.
