Description

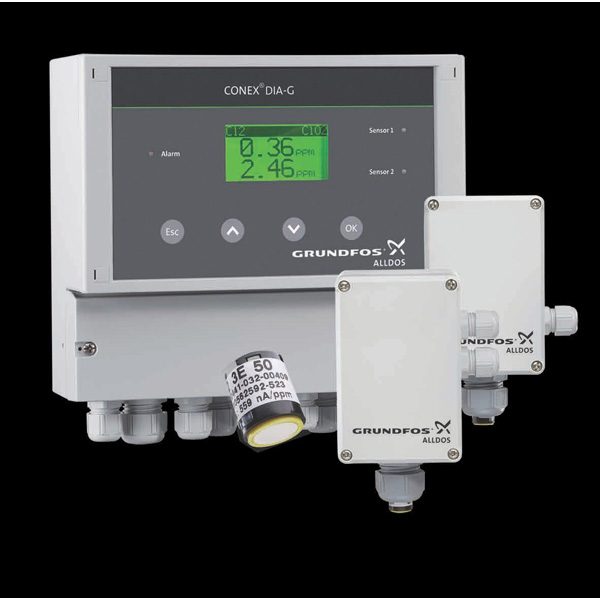

Conex® DIA-G gas warning system
The Conex® DIA-G (Dosing Instrumentation Advanced-Gas) safety system monitors gas dosing installations and gas storage rooms.
Features
- Monitoring of two separate gas storage rooms or two different gases at the same time
- Simultaneous display of both measured values
- Optimum safety due to permanent sensor monitoring, alarm relay and optional backup operation by connection of an external buffer battery
- Very short response time in the event of a sudden change in the gas concentration
- Long and maintenance-free sensor service life
- Sensor recognition and auto-calibration as well as monitoring of sensor life
- Separate sensor interface for one potentiostatic sensor. When using the separate sensor interface, the Conex® DIA-G can be installed in a control room at a distance of up to 500 m from the sensor interface
- Optional audible and visual alarm device
- Display languages: German, English, French, Spanish, Polish and Russian
Monitoring parameters
- Chlorine
- Chlorine dioxide
- Ozone
- Ammonia
- Hydrochloric acid
Applications

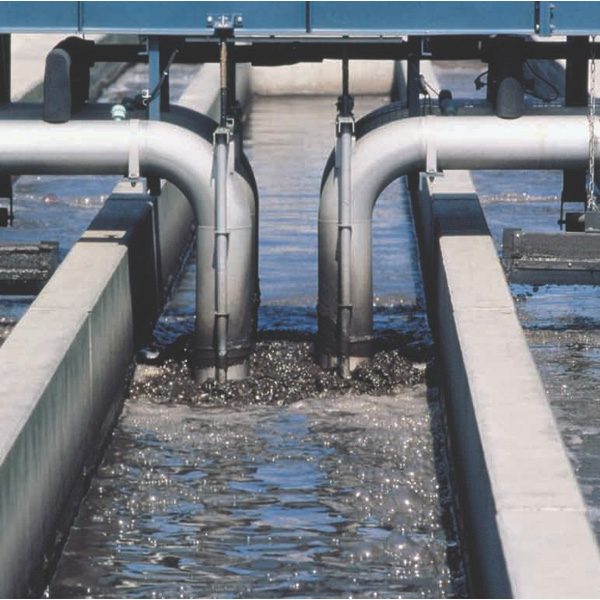

- Drinking water treatment monitoring of ambient air for admissible gas concentrations in gas storage rooms or near chlorine dioxide generators
- Swimming pool and bathing water treatment monitoring of ambient air for admissible gas concentrations in gas storage rooms or near chlorine dioxide generators
- Industrial process water treatment monitoring of ambient air for admissible gas concentrations in gas storage rooms or near chlorine dioxide generators
- Food and beverages industry monitoring of ambient air for admissible gas concentrations in gas storage rooms or near chlorine dioxide generators
